Drills
UX42S
-
Product specifications
Material
Product features
Processing range
-

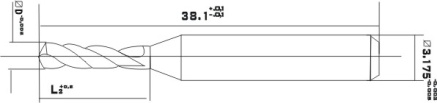

Shank dia. 3.175mm Overall length 38.1 mm

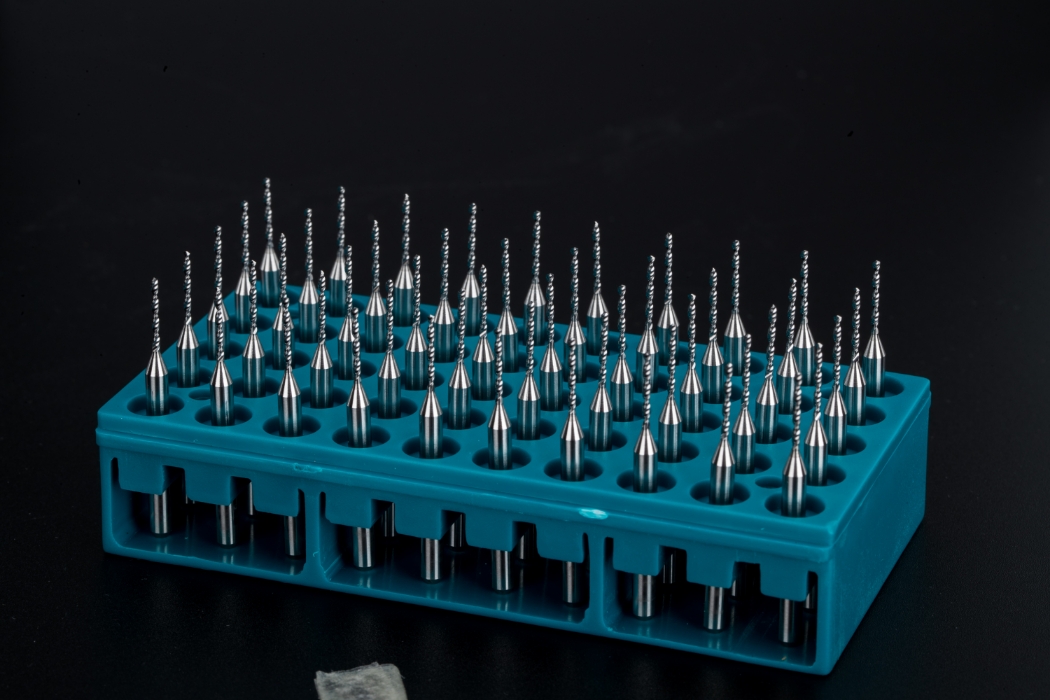

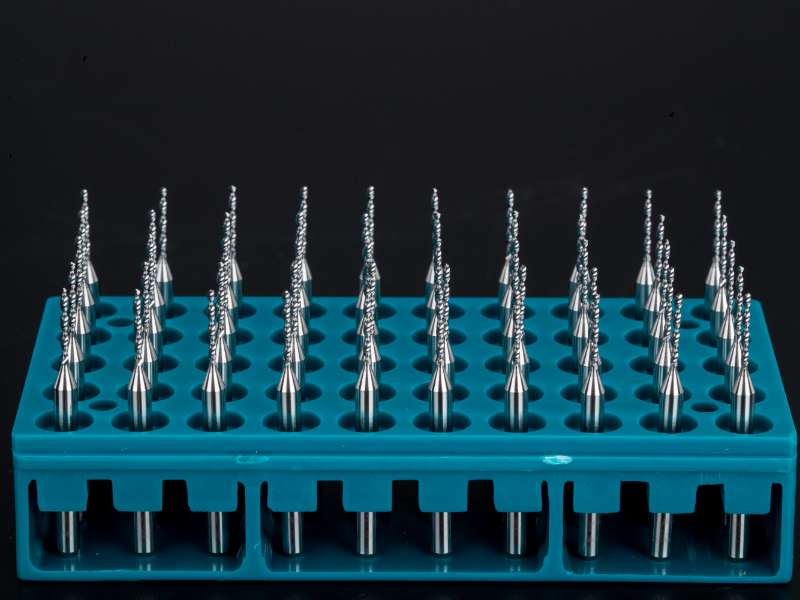

Tungsten Carbide Drills with steel shank
Tungsten Carbide Drills with steel shank, special flute (Undercut/Spade Type), variable Web design and a shank dia. of 3.175 mm, in the dia. range of 0.15-0.80 mm, to be used for multilayer PCBs with filled materials and for high TG and BT resins, specially designed for high RPM drilling spindles > 200.000 U/min, stands out for good chip removal, extremely low drill breakage and im
proved drill deflection values
PCB manufacturing
Precision mould
Precision hardware processing
